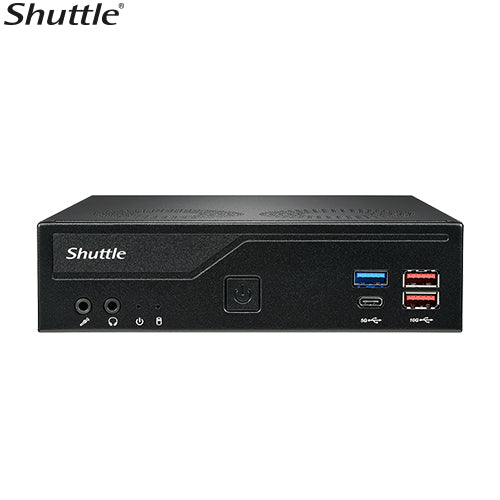

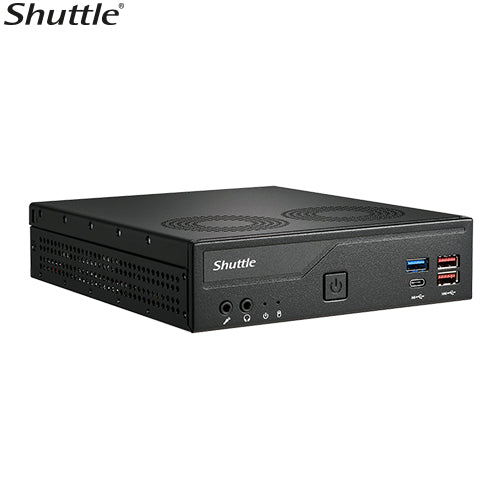

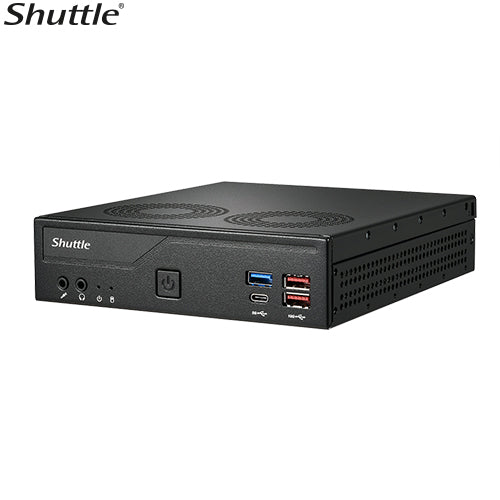

XPC Slim DH770

Supports the Latest Intel® 14th Gen Processor

Harness the power of the latest 10nm architecture and H770 chipset with the DH770, supporting Intel® Raptor Lake Refresh (14th Gen) Processors. Its performance hybrid architecture extends core technology, integrates Intel® graphic technology, enhances core efficiency, and delivers intelligent workload optimization while enabling the next-generation immersive visual and creative experience.

• Up to 24 cores: 8 performance cores and 16 efficient cores
• Supports Intel® Thread Director for optimal multitasking
• Maximized 32 threads and peak clock speed up to 5.8GHz via 120W power
• Advanced connectivity options like Wi-Fi 7

High-Performance DDR5-5600 Memory Support

The DH770 supports dual-channel DDR5-5600 memory, leveraging its high bandwidth and multitasking capabilities to deliver exceptional performance and efficiency for AIoT computing applications.

• Maximum capacity of up to 64GB (32GBx2)
• Operates efficiently at 1.1V, reducing power consumption

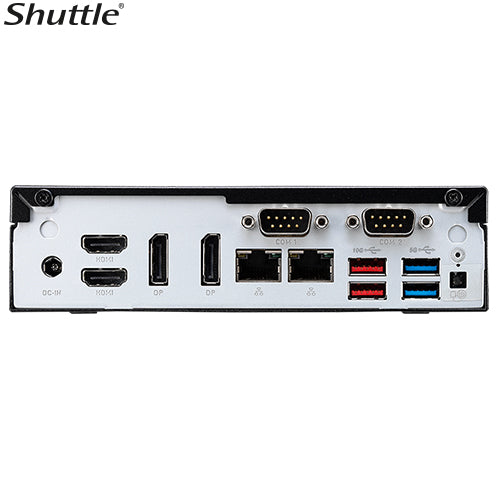

Comprehensive I/O for Versatile Applications

The DH770 offers a comprehensive I/O interface within its 1.3-liter mini model.

• High-speed data transmission: 4 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1 (including 1 Type-C port), 2 x COM.
• Multi-display support: Integrated four video output interfaces, facilitating versatile display configurations for enhanced productivity.
• Seamless network connectivity: Up to 2.5GbE dual LAN, ensuring stable and fast network connection for demanding applications.
• Flexible expansion options: 2 x M.2 for M.2 SSD and Wi-Fi modules.

Quad-Display Support for 4K Video Walls

Quad-display support enhances productivity, decision-making, and efficiency by providing additional screen space for various tasks. It is invaluable in finance, data analysis, graphic design, and industries like surveillance and digital signage.

• Integrated Intel® UHD Graphics: Delivers clear 4K/Ultra HD visuals
• 2 HDMI 2.0 and 2 DisplayPort 1.4 Ports: Supports resolutions up to 4096 x 2160 @60Hz
• Supports Four Independent Displays, and enables 2x2 video wall configuration

COM Ports for Seamless Peripheral Integration

The DH770 features two COM ports, one of which supports 0/5/12V, facilitating easy connection to peripherals such as thermal printers, automation devices, and barcode scanners.

• 1 x RS232/422/485
• 1 x RS232 only

Expand with M.2 for Enhanced Storage and Connectivity

Enhance your capabilities with DH770's M.2 expansion slots, perfect for extending storage M.2 SSD and enabling Wi-Fi connectivity for seamless network access in various professional fields.

• Extend Storage
  1 x M.2 2280, M key slot supports NVME(PCIe x4) or SATA.
• Additional WLAN module
  1 x M.2 2230, E key slot supports PCIe x1, Wi-Fi module, Bluetooth module, or Intel CNVi module for building a robust network environment, ensuring higher transmission bandwidth in wireless settings.

Optimized for Efficiency and Convenience

• BIOS and Utility Features:
  Wake on LAN, Power-On After Power Failure, RTC Power-on, Watch Dog, and Auto Power on.
• Data Security and Performance:
  Supports SATA RAID 0 (striping) for enhanced read/write speeds and RAID 1 (mirroring) for critical data redundancy.
• Compact yet Reliable:

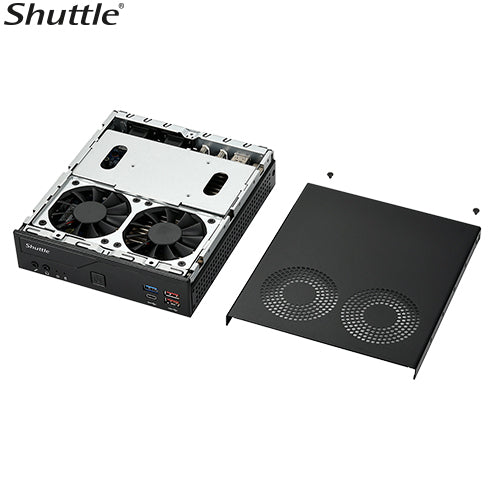

  Incorporates advanced heat pipe cooling system with fan, ensuring 24/7 long-term operation and suitability for working environments ranging from 0 to 50 degrees Celsius.
• Mounting Methods:
  Supports VESA mounting standards of 75x75 and 100x100, and can also be mounted to the rear of an LCD monitor or TV.
• Supported Operating System:
  Windows 11 and Linux (64-bit).
