Shuttle

XPC Slim DH610

XPC Slim DH610

$1,379.00 AUD
$1,788.00 AUD $1,379.00 AUD
Sale Sold out

Includes 12 Months Superbolt Enterprise CMS (Valued at $549) – FREE!

Best-Selling 1-Liter Mini PC with Powerful Multimedia Capabilities
Pre-Order

The Shuttle DH610 is compatible with Intel® 12th, 13th, and 14th Gen Core™ processors, offering flexibility across multiple performance tiers. While this deployment uses the 12th Gen i3-12100 for excellent performance-per-dollar value, the platform also supports up to the latest 14th Gen CPUs. Key features include dual-channel DDR4-3200 (up to 64GB), UHD Graphics series, support for triple 4K displays, rich I/O connectivity, and two M.2 slots—making it an ideal choice for digital signage, office computing, and thin-client environments.

  • Intel® 14th Gen Processor Compatibility

    Equipped with the Intel® H610 chipset, the DH610 seamlessly supports the latest Raptor Lake Refresh (14th Gen) Processors. Harnessing integrated Intel® UHD Graphics, the DH610 excels in various applications like 4K display, video editing, and AI tasks.

    Upgrade to 14th Gen Intel CPU Now!
    • Up to 24 cores: 8 Performance-cores and 16 Efficient-cores
    • Supports Intel® Thread Director for optimal multitasking
    • Maximized 32 threads and peak clock speed up to 5.8GHz via 120W power
    • Advanced connectivity options like Wi-Fi 7

  • Triple-Display Productivity

    With one HDMI 2.0b and two DisplayPort outputs built-in, DH610 supports three independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

  • Strong Expansion Capacity with M.2

    With a native M.2 2280/2260/2242 Type M slot and an M.2 2230 Type E slot, DH610 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
    *M.2 2280 key M supports SATA 3.0 and PCIe 3.0 x 4 storage interfaces.

  • Rich Connectivity and High-speed Intel® 2.5GbE LAN

    DH610 provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, and two RS232 for flexible connectivity options. In addition, Intel® 2.5 GbE and Intel® 1GbE Lan are equipped to support Wake on LAN functions to provide high-speed data transfer capability.

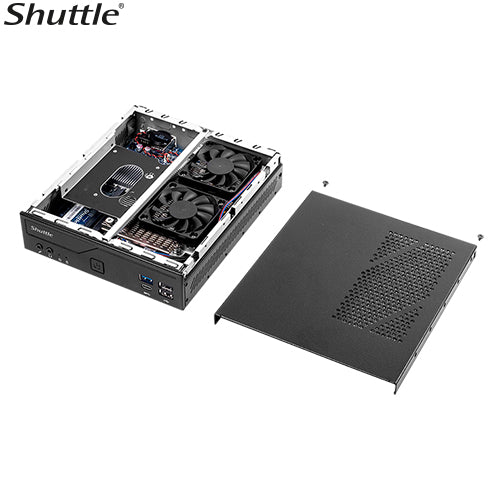

  • Exclusive Cooling Technology

    DH610 features Shuttle’s exclusive heat-pipe cooling system with an intelligent fan design. The clever ventilation design allows constant air circulation between the inside and outside of the machine resulting in high stability and low noise for 24/7 long-term operation.

  • Operating System Support



    • Windows 11 64bit
    • Windows 10 64bit
    • Linux

FORM FACTOR 1.3L chassis
PROCESSOR Intel® 12th Gen Alder Lake I3-12100
CHIPSET Intel H610 Express chipset
MEMORY 1 x DDR4 SO-DIMM 16G 2666/32000
VIDEO OUTPUT HDMI 2.0 x 1+ DisplayPort x 2, Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIO Realtek High Definition Audio
ETHERNET 1 x Intel GbE Lan + 1 x 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
STORAGE INTERFACE 1 x 2.5" 128GB SATA SSD
ONBOARD CONNECTORS (1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

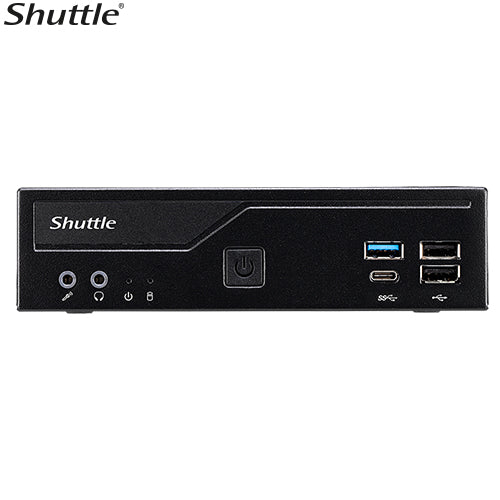

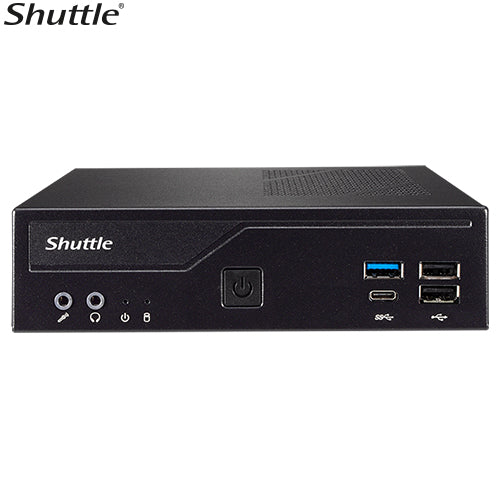

FRONT PANEL (2) USB 3.2 Gen1 ports
(Include Type C x1)
(2) USB 2.0 ports
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL (2) RJ45 Gigabit LAN port w/LED
(1) HDMI port
(2) Display port
(2) USB 3.2 Gen1 ports
(2) USB 2.0 ports
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(2) Wireless Antenna fixture
(1) Kensington lock
DRIVE BAYS (1) 2.5" HDD / SSD bay
DIMENSIONS 190(L) x 165(W) x 43(H) mm
POWER 120W Power Adapter
Input:100- 240V AC
19V 6.32A

*DH610 support 12V DC input.
ACCESSORIES XPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT (1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OPERATING SYSTEM Windows 11 Pro Standard
OPERATING TEMPERATURE 0℃~50℃
REMARK/strong> RS232/422/485 ports support 0/5/12V output.
Voltage setting please refer to Quick Guide.
Weight (kg) 1.3
Width (cm) 19
Length (cm) 16.5
Height (cm) 4.3
QuickGuide Download
User Manual Download
  • Barebone 36 months
  • Key part 12 months warranty following Shuttle RMA policy
  • Deliver to metro area only
