1 6

Shuttle

XPC nano NE10N

XPC nano NE10N

$930.00 AUD
$1,209.00 AUD $930.00 AUD
Sale Sold out

Includes 12 Months Superbolt Enterprise CMS (Valued at $549) – FREE!

Palm-sized Performance | Versatile 0.6-liter Mini-PC for Essential Business Solutions
Pre-Order

environments, featuring a 0.6-liter chassis for versatile placement. Powered by Intel® Alder Lake-N processors and Intel® UHD Graphics, this mini-PC delivers responsive performance with advanced power efficiency and modern architecture while supporting dual 4K displays for enhanced visual experiences. With six USB ports for extensive connectivity and an M.2 2280 slot that can accommodate up to 1TB PCIe Gen3 NVMe or SATA drives, the NE10N offers flexibility for various business applications. Available in fanless (N100) and actively cooling (N305) configurations, the NE10N is engineered for reliable 24/7 operation in business scenarios, from digital signage and retail kiosks to office PCs and automation control systems.

  • Intel® Alder Lake-N | Computing Efficiency

    The NE10N is equipped with Intel® Alder Lake-N processors with integrated UHD Graphics, offering two options－the N100 and Core i3 N305－to meet different computing needs. Part of the Alder Lake-N family the Intel® Processor N series is built on Intel’s 10nm SuperFin process, featuring Intel’s ultra-low power technology and a new hybrid architecture that combines high-performance cores (P-cores) and energy-efficient cores (E-cores) for a better balance of performance and power efficiency.

  • Dual 4K Display Support | Visual Communication

    The NE10N supports dual independent 4K displays, offering an exceptional visual experience and flexible display configurations for improved workflow efficiency. Powered by Intel® UHD Graphics with HDMI 2.0 and DisplayPort 1.4, it delivers clear, detailed visuals. Ideal for digital signage and commercial displays, it meets high-quality performance demands.



    • Dual independent 4K@60Hz output
    • 1x HDMI 2.0 port (18Gbps bandwidth), 1x DisplayPort 1.4

  • Storage and Wireless Options | Business Ready

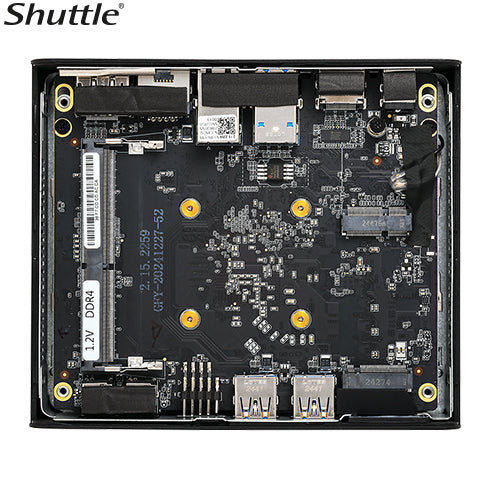

    The NE10N maximizes expandability through dual M.2 slots, supporting high-speed storage and wireless connectivity for diverse deployments.



    • M.2 2280 M-Key: Up to 1TB NVMe PCIe Gen3 or SATA SSD
    • M.2 2230 E-Key: WiFi/Bluetooth module support

  • Practical Connectivity | Streamlined Design

    The NE10N delivers high-speed data transmission through placed USB ports on both the front and rear panels, which are optimized for commercial device connections.



    • 4x USB 3.2 Gen2 (10Gbps, up to 1280MB/s)
    • 2x USB 2.0 (480Mbps)
    • Front and rear panel access for flexible deployment

  • Network Integration | Remote Control

    The NE10N supports Gigabit LAN for reliable network connectivity, with Wake-on-LAN functionality for remote system management. These features ensure seamless operation and convenient remote access, making the NE10N an ideal solution for business environments where efficient network communication and management are crucial.



    • Gigabit Ethernet for high-speed networking
    • Wake-on-LAN support (S3/S4/S5 states)
    • Stable network performance for 24/7 operation

  • Compact Design | 24/7 Reliability

    The NE10N combines reliability and flexibility in its compact NUC-style chassis, engineered for continuous operation. It is VESA-ready supporting 100x100mm and 75x75mm mounting patterns, offering versatile installation options to suit various business environments.



    • Operating temperature: 0-40°C
    • NE10N3: Active cooling for enhanced performance
    • NE10N1: Fanless design for silent operation
    • Compact size: 135 x 115 x 39 mm
    • VESA mount support: 75x75/100x100mm

FORM FACTOR Shuttle 0.6L Form Factor
PROCESSOR Intel® 12th Gen Alder Lake-N100 (TDP 6W)
MEMORY 1 x DDR4 SO-DIMM 16G 2666/3200
STORAGE 1 x 2.5" 128GB SATA SSD
VIDEO OUTPUT Intel UHD Graphics
AUDIO Senary SN6140-CNZR Audio controller
ETHERNET Motorcomm YT6801 LAN controller
Support 10/100/1000/Mbps

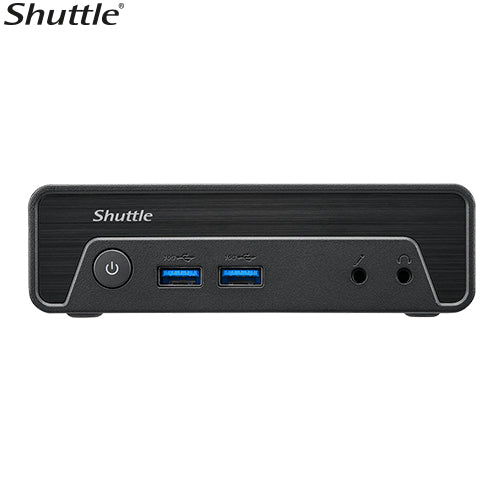

FRONT PANEL 1 x Power button W/LED
2 x USB 3.2 Gen 2
1 x MIC-IN
1 x Audio out

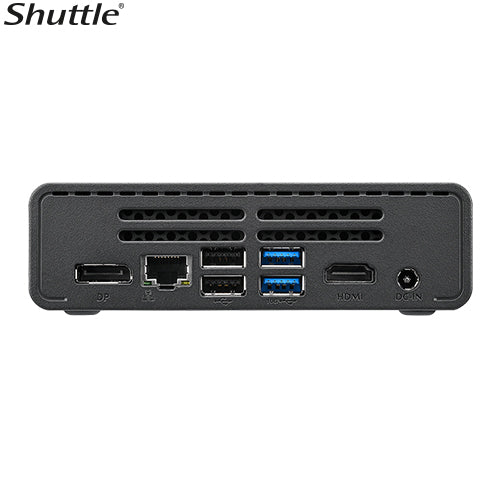

BACK PANEL 1 x Display port
1 x RJ45
2 x USB 2.0
2 x USB 3.2 Gen2
1 x HDMI
1 x DC-in Jack
DIMENSIONS 135(W) x 115(D) x 39(H) mm (41.3mm include rubber)
POWER 65W Power Adapter
Input:100- 240V AC
19V 3.42A
ACCESSORIES Quick User Guide
VESA mount
VESA screw pack
Adapter and power cord
M.2 SSD thermal pad pack
EXPANSION SLOT 1 x M.2 2230 E key
1 x M.2 2280 M key(SATA/PCIE GEN3)
OPERATING SYSTEM Windows 11 Pro Standard
OPERATING TEMPERATURE 0℃~40℃
Weight (kg) 0.6
Width (cm) 13.5
Length (cm) 11.5
Height (cm) 4.13
QuickGuide Download
  • Barebone 36 months
  • Key part 12 months warranty following Shuttle RMA policy
  • Deliver to metro area only
