Shuttle

XPC nano NC40U

XPC nano NC40U

$999.00 AUD
$1,289.00 AUD $999.00 AUD
Sale Sold out

Includes 12 Months Superbolt Enterprise CMS (Valued at $549) – FREE!

Multi-Tasking Superior Performance for Your Business Needs
Pre-Order

Shuttle’s latest XPC nano NC40U series houses the performance hybrid architecture of Intel® 12th Gen Alder Lake-U platform, capable of multitasking and parallelism, and with Intel® Iris® Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85L palm size design, it can accommodate one 2.5" hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os as USB 3.2 Gen2, USB 3.2 Gen1, and Intel® Gigabit Lan, supporting triple display by the HDMI, DisplayPort, and Type-C that increase the functionality to adapt to various business computing to suit digital signage, Kiosk, edge computing, and video conference.

  • Intel® 12th Gen Processor

    The NC40U series includes four models of 12th Gen Intel® Celeron®7305U, and Core™ i3-1215U/i5-1235U/i7-1255U. Benefiting from a new performance hybrid design of 12th Gen processors and Intel® Iris® Xe graphics with massive 96EUs (Execution Units), plus with DDR4 memory speeds up to 3200MHz, the NC40U can process multitask simultaneously while creating content and handle high-performance AI acceleration with the optimized power efficiency.

  • 4K Resolution and Triple Display

    The NC40U series provides an HDMI 2.0b, a DisplayPort 1.4a, and a Type-C to reach three independent displays, supporting resolutions up to 4096 x 2160 / 3840 x 2160 @60Hz.

  • Strong Expansion Capacity with M.2

    With two native M.2 2280 Type M slots and one M.2 2230 Type E slot, the NC40U series offers considerably faster storage and expandability of M.2 SSDs, or NVMe SSDs and Wi-Fi modules. *One M.2 2280 supports PCIe Gen 4 x4, and another supports PCIe Gen3 x4/SATA mode

  • Space for 2.5" Storage | Enhanced with RAID Support

    Despite its tiny body, the NC40U series allows easy installation of up to 1x 15mm (7/9.5/12.5/15mm) 2.5" HDD/SSD to provide flexible storage capacity without volume restriction. Additionally, it supports both NVMe RAID (0, 1) and SATA RAID (0, 1) configurations, enhancing data security and performance for critical applications.

  • Rich I/O for Connectivity

    NC40U series features flexible connectivity options for two USB 3.2 Gen2 and five 3.2 Gen1 (Including one Type-C) and an Intel ® 1GbE Lan that support Wake on LAN functions.

  • Exclusive Cooling Technology

    The NC40U series features Shuttle's exclusive heat-pipe cooling system with a smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

  • Operating System Support



    • Windows 11 64bit
    • Linux

FORM FACTOR Shuttle 0.85L Form Factor
PROCESSOR Intel® 12th Gen Celeron 7305
MEMORY 1 x DDR4 SO-DIMM 16G 2666/3200
VIDEO OUTPUT Integrated Intel® Iris Xe graphics (features depend on processor)
1x HDMI 2.0b Port + 2x DisplayPort Triple video outputs
AUDIO C-Media CM6542
ETHERNET Built in Intel I219 support 10/100/1000Mbs
STORAGE INTERFACE 1 x 2.5" 128GB SATA SSD

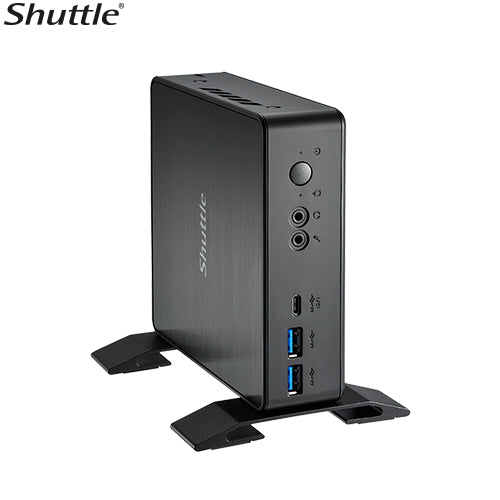

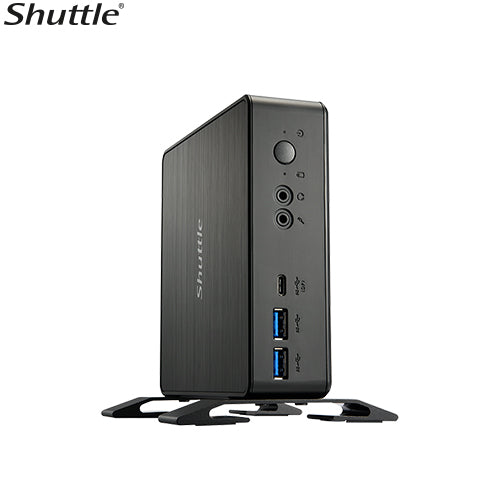

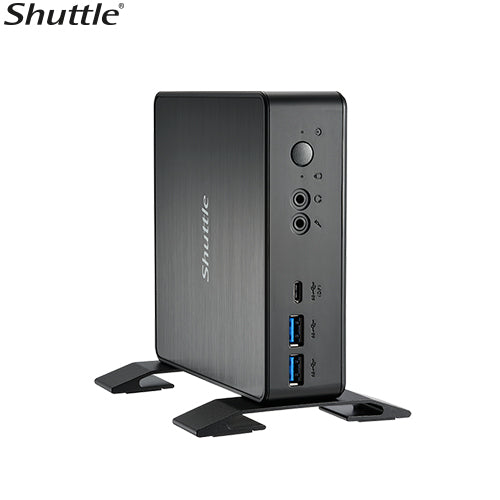

FRONT PANEL (1)Power button
(1)Power LED
(1)HDD LED
(2)USB 3.2 Gen 1 Type A
(1)USB 3.2 Gen 1 Type C (w/DP)

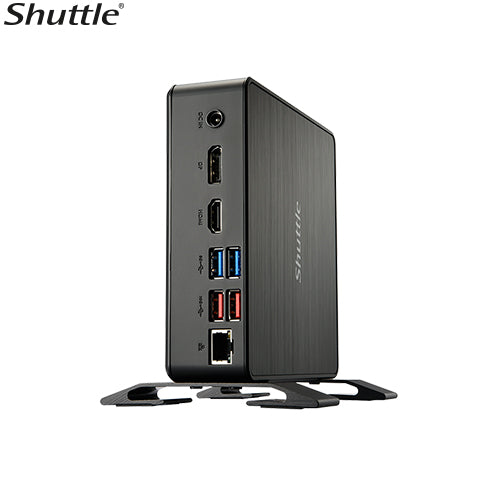

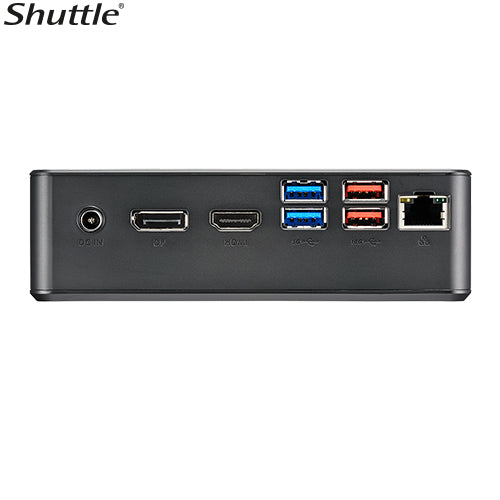

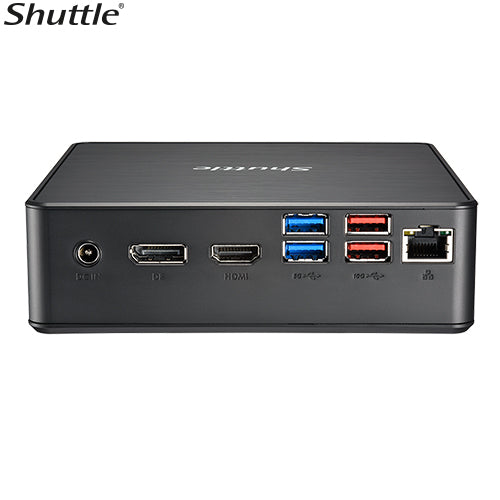

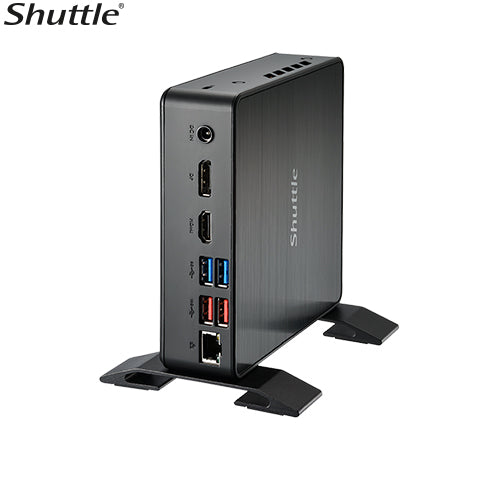

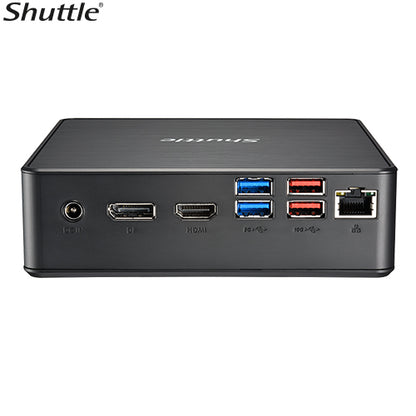

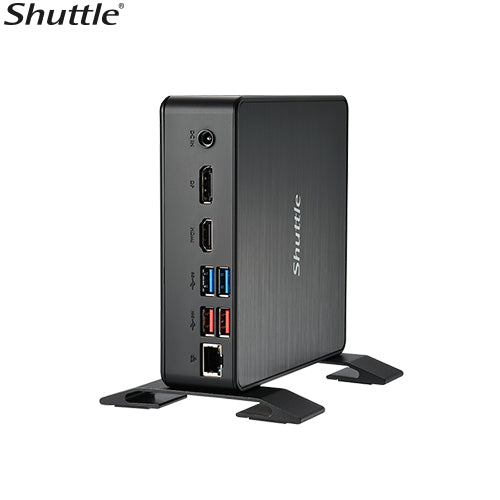

BACK PANEL (1)HDMI
(1)DisplayPort
(2)USB 3.2 gen1
(2)USB 3.2 gen2
(1)RJ45
(1)DC-in Jack
(1)Kensington Lock
DRIVE BAYS (1)2.5" 15mm SATA HDD / SSD
DIMENSIONS 142(L) x 142(W) x 42(H) mm
POWER 65 Watts (19V/3.42A)
ACCESSORIES Quick User Guide
DVD driver
VESA mount
Foot Stand
Adapter and power cord
screw pack
EXPANSION SLOT (1)M.2 2230 E key
(1)M.2 2280 M key(w/PCIe Gen3 x 4, SATA 6 Gb/s)
(1)M.2 2280 M key(w/PCIe Gen4 x 4)
OPERATING SYSTEM Windows 11 Pro Standard
OPERATING TEMPERATURE 0℃~50℃
Weight (kg) 0.4
Width (cm) 14.2
Length (cm) 14.2
Height (cm) 4.2
QuickGuide Download
User Manual Download
  • Barebone 36 months
  • Key part 12 months warranty following Shuttle RMA policy
  • Deliver to metro area only
